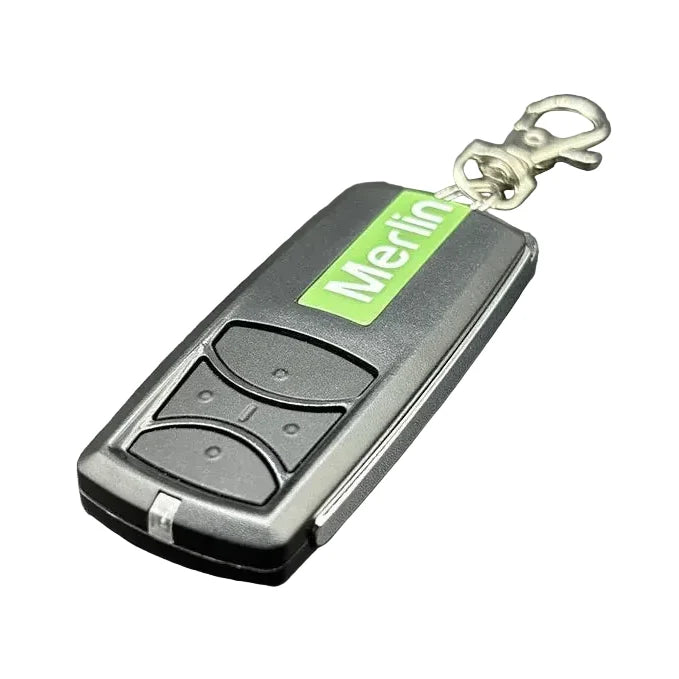

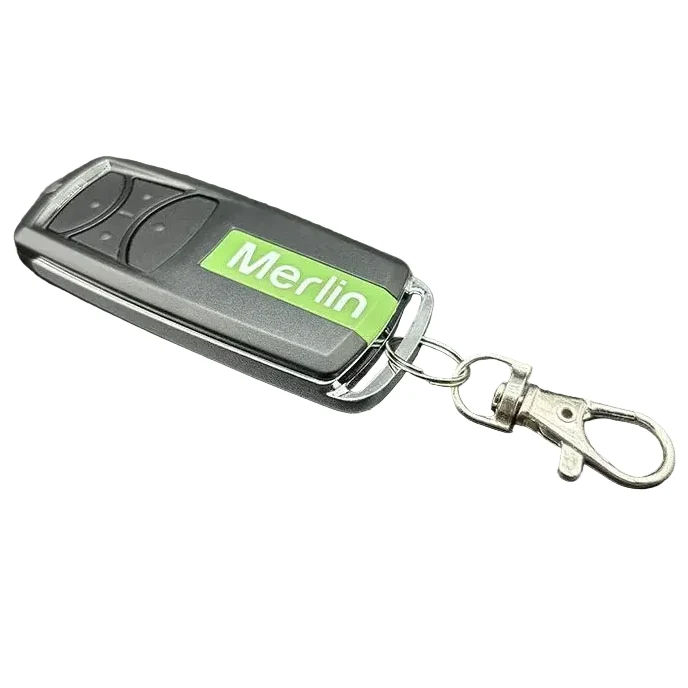

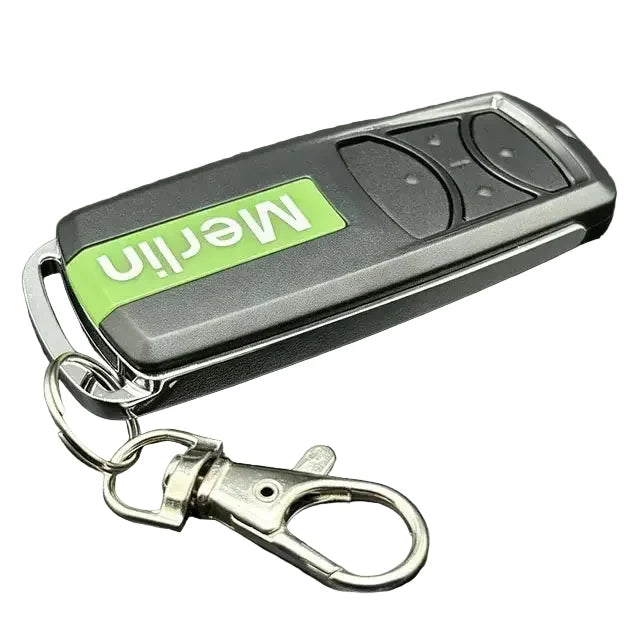

Merlin E960M 4-Button Garage Door Remote, 433MHz (2PCS)
2-piece replacement remote control set designed for compatible Merlin garage door, roller door, sectional door and gate opener systems. Features 4 buttons and multi-frequency support at 433.30MHz, 433.92MHz and 434.54MHz.
Supports rolling code technology and can be programmed with compatible receivers.
Each button can be configured for different compatible code modes and opener systems.

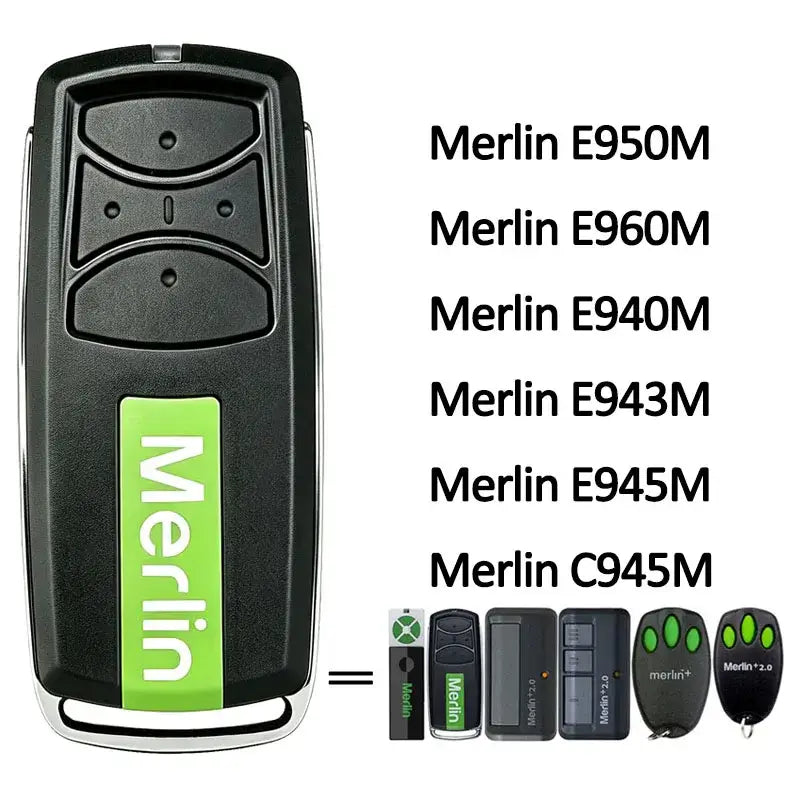

Ideal as a replacement or spare remote for compatible Merlin, Motorlift and Grifco systems.
Main Features
- 4-button remote control with multi-frequency 433.30MHz / 433.92MHz / 434.54MHz support
- Rolling code technology for enhanced security
- Green LED indicator flashes when a button is pressed
- Suitable for selected Merlin Security+ and Security+ 2.0 systems
- Can be programmed directly with a compatible receiver

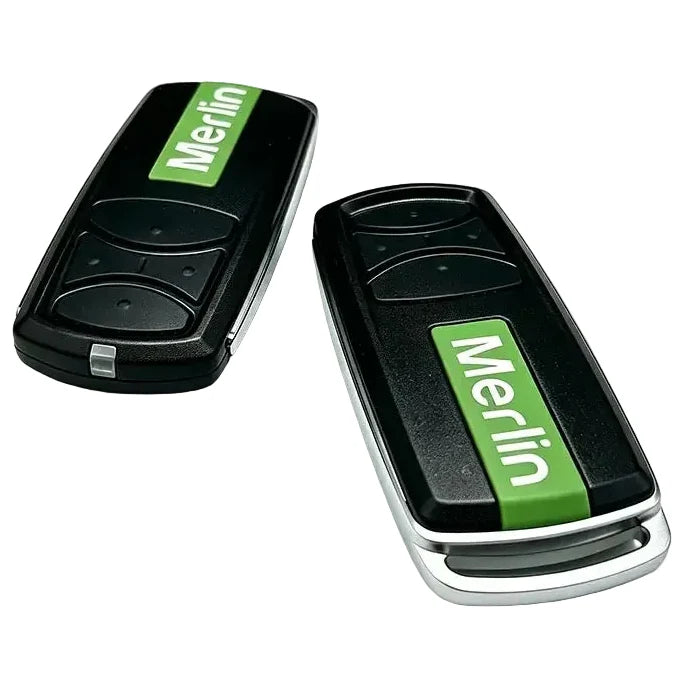

- Supplied as a convenient 2-piece set
Specifications
- Type: Garage Door & Gate Remote Control
- Model: E960M
- Quantity: 2 Remote Controls
- Frequency: 433.30MHz / 433.92MHz / 434.54MHz
- Coding: Rolling Code / Billion Code
- Buttons: 4
- Battery: Included
- Indicator: Green LED
- Programming: Receiver programming required
- Compatibility: Selected Merlin, Motorlift and Grifco systems
Compatible Roller Door Motors
- Merlin MR550EVO WeatherDrive
- Merlin MR650EVO Quiet Drive
- Merlin MR850EVO Silent Drive
- Merlin MR655MYQ SilentDrive Essential
- Merlin MR855MYQ SilentDrive Elite
- Merlin MR600
- Merlin MR650
- Merlin MR800
- Merlin MR800A
- Merlin MR850
- Merlin MR60
- Merlin MR1000
- CR650EVO Handylift
Compatible Industrial Motors
- Merlin MRC950 Overdrive Light Industrial Roller Door Motor
- Merlin MRC950EVO Overdrive Light Industrial Roller Door Motor
- Grifco GLD-RDO Light Industrial Motor
Compatible Gate Motors
- Merlin MGA300
- Merlin MGS300
- Merlin MGS400
- Merlin MGS500
- Merlin MGS1000
- Motorlift HC100ML
- Motorlift HC300ML
- Motorlift HC400ML
- Motorlift HC500ML
- Motorlift HC600ML
Compatible Sectional / Panel Door Motors
- Merlin MT3850EVO WhisperDrive
- Merlin MT120EVOPS Cyclone Pro
- Merlin MT100EVO Tiltmaster
- Merlin MT60EVO PowerAce
- Merlin MS65MYQ Commander Essential
- Merlin MS105MYQ Commander Elite
- Merlin MS125MYQ Commander Extreme
- Merlin MJ3800MYQ
- Merlin MT60
- Merlin MT60P
- Merlin MT230
- Merlin MT600
- Merlin MT800
- Merlin MT1000
- Merlin MJ3800
- Merlin MJ3800R
- Merlin MT5580
- CS60EVO Powerlift
- CS100EVO Powerlift Plus
- Motorlift ML700
- Motorlift ML750
- Motorlift ML850
- HC100ML
- HC300ML
- HC400ML
- HC500ML
- HC600ML
- 3800
Code Mode Selection
The remote supports multiple compatible code modes:
- 1 press: Merlin 2.0 – 433.30MHz / 433.92MHz / 434.54MHz
- 2 presses: 433.92MHz LiftMaster
- 3 presses: 433.92MHz Billion Code
After selecting the required code mode, the remote must be learned to the corresponding compatible receiver.
Programming
- Press and hold buttons 2 and 3 simultaneously for approximately 6 seconds until the indicator remains illuminated.
- Release the buttons to enter code selection mode.
- Press the button you want to configure to select the required code mode.
- Press another button to exit code selection mode.
- Program the remote with the compatible receiver according to the receiver's programming procedure.
