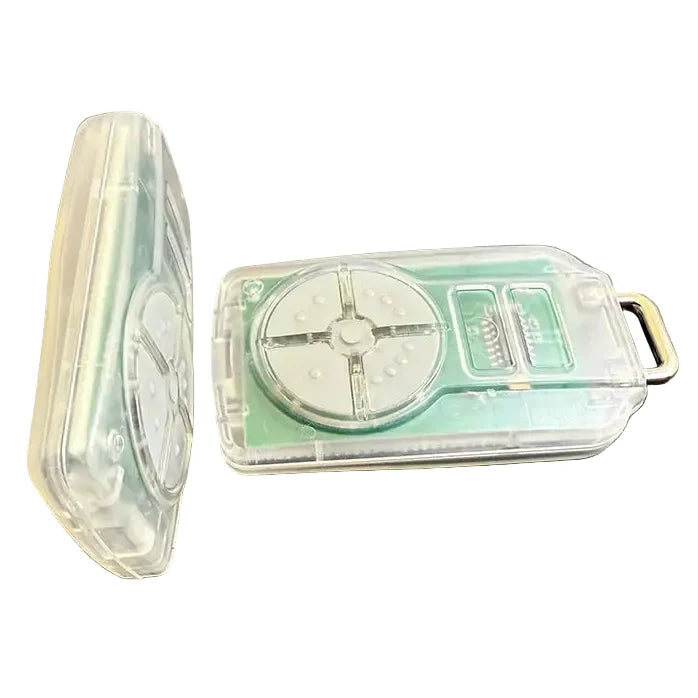

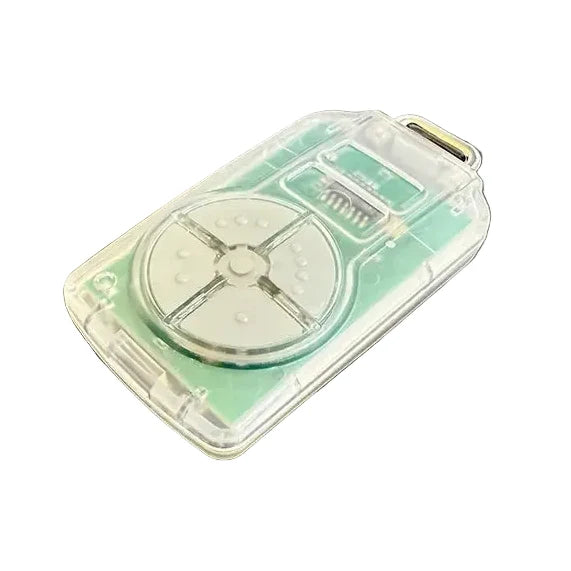

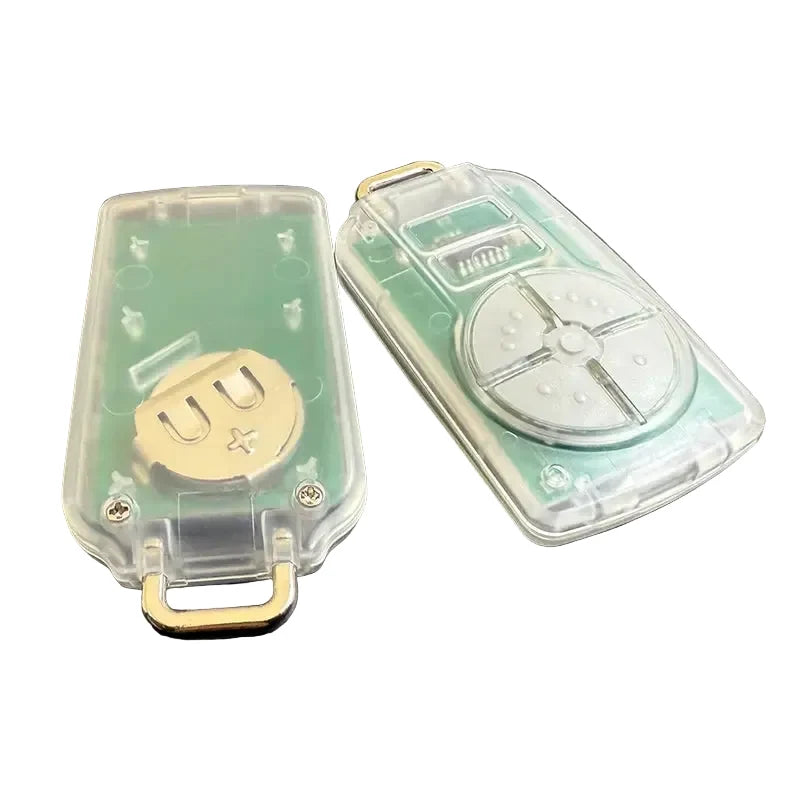

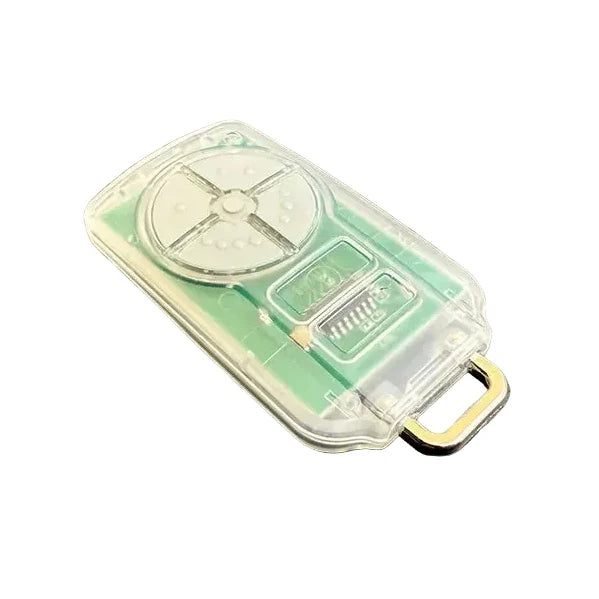

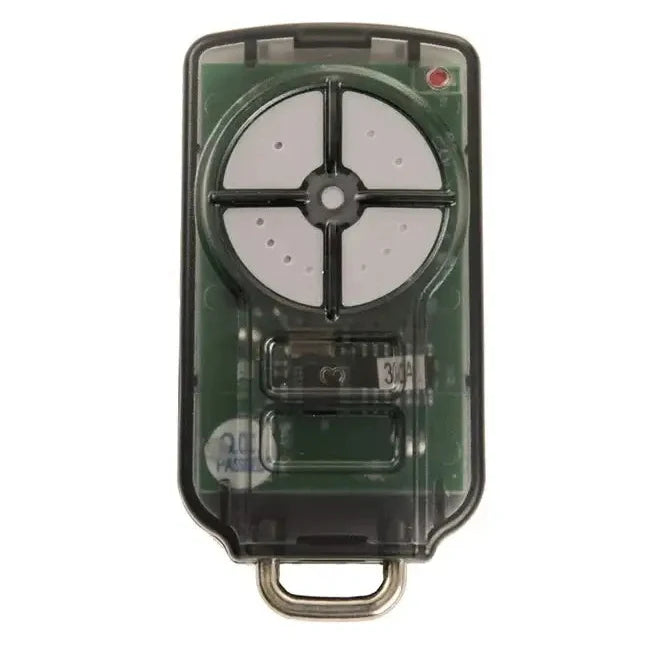

ATA PTX5/PTX2 433.92MHz Rolling Code Garage Door Remote
Replacement 433.92MHz remote control designed for compatible ATA garage door, roller door and gate opener systems. Features four buttons and rolling code technology for secure and reliable operation.
Compatible with selected ATA PTX and TrioCode receivers and motors across residential, gate and industrial applications. The remote is programmed directly to the compatible receiver or opener. Programming instructions are included for convenient setup.
Main Features
- 433.92MHz operating frequency with rolling code technology
- 4-button handheld remote control
- Compatible with selected ATA PTX and TrioCode systems
- Suitable for garage doors, roller doors, sectional doors and gates
- Programming to the receiver required
- Battery, English manual and keychain included
Specifications
- Model: YNG157
- Type: Garage Door & Gate Remote Control
- Frequency: 433.92MHz
- Coding: Rolling Code
- Buttons: 4
- Programming: Receiver programming required
- Battery: Included
- Condition: New

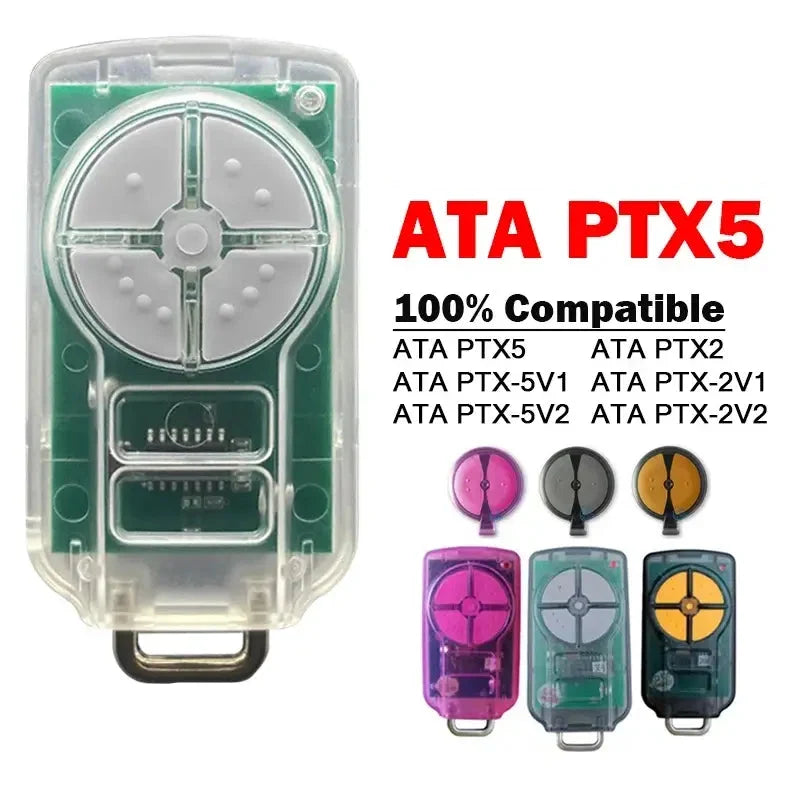

Compatible ATA Remotes
- ATA PTX2
- ATA PTX5
- ATA PTX-2V1
- ATA PTX-2V2
- ATA PTX-5V1
- ATA PTX-5V2
Compatible Roller Door Motors
- GDO6v3 EasyRoller
- GDO6v4 EasyRoller
- GDO8v3 Shedmaster
- GDO10v1 Toro
- GDO10v2 Toro
- GDO10v3 Toro
- GDO12 Hiro
- Other compatible TrioCode receivers and motors
Compatible Sectional Door Motors
- DCB-05 Dual Gate Controller
- GDO7v2 SecuraLift
- GDO7v3 SecuraLift
- GDO9v2 SecuraLift
- GDO9v3 Dynamo
- GDO9v3 Dominator
- GDO10v1 Toro
- GDO11v1 Ero
- Tempo ATS-2
- Other compatible TrioCode receivers and motors
Compatible Gate Motors
- SGO-1 Elite
- SGO1v3 Elite
- SGO1v4 Elite
- NES24v1 NeoSlider
- NES24v2 NeoSlider
- NES24v3 NeoSlider
- NES500 NeoSlider
- NES800 NeoSlider
- Other compatible TrioCode receivers and motors
Compatible Industrial Openers
- Axess Pro Series 3100 – Logic Console Only
- Axess Pro Series 3300 – Logic Console Only
- Axess Pro 1505 Overhead
- Axess Pro 600 Slider
- Axess Pro 800 Slider
- Axess Pro 200 Swing
- Axess Pro 400 Swing
Compatible Receivers
- FHCRX1 Single Channel Receiver
- FHCRX1v2 Single Channel Receiver
- FHCRX2 Dual Channel Receiver
- FHCRX2v2 Dual Channel Receiver
- FHRX2 Plug-In Board Receiver
Programming
- Press and hold the DOOR-CODE learn button on the compatible receiver.
- While holding the learn button, press and hold one of the remote buttons for approximately 2 seconds, then release.
- Press the same remote button again for approximately 2 seconds, then release both buttons.
- Press the programmed remote button to test operation.
Note: Access to the compatible receiver or opener is required for programming.
Package Includes
- 1 x Remote Control
- 1 x Battery
- 1 x English Manual
- 1 x Keychain
Compatibility Note
This is a replacement remote control, not an original ATA remote. Please confirm that your existing remote, receiver or opener is compatible with the models listed above before purchasing.
