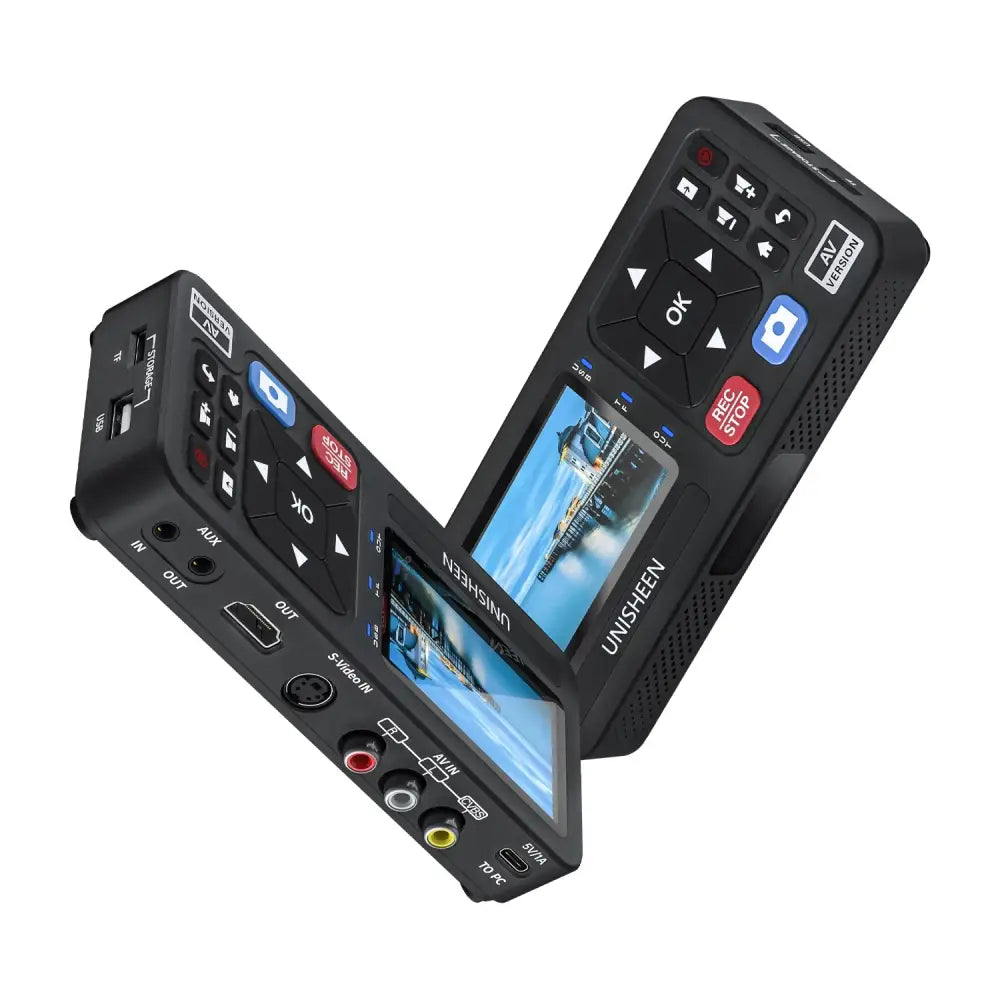

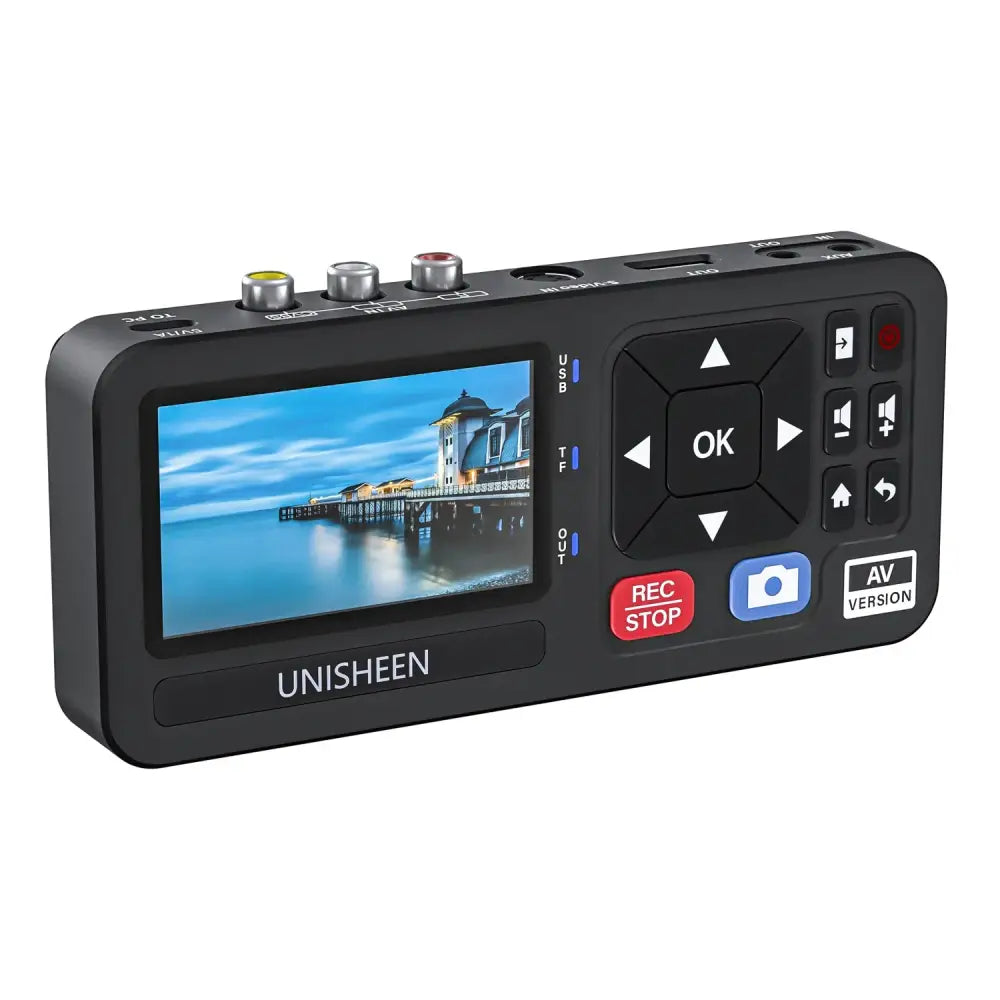

1080p VHS to Digital Converter & MP3 Recorder
Video recorder and converter for recording audio and video from devices with CVBS/S-Video output. It supports VHS, VCR and camcorder inputs and saves recordings to USB flash drives or TF cards in MP4 format.

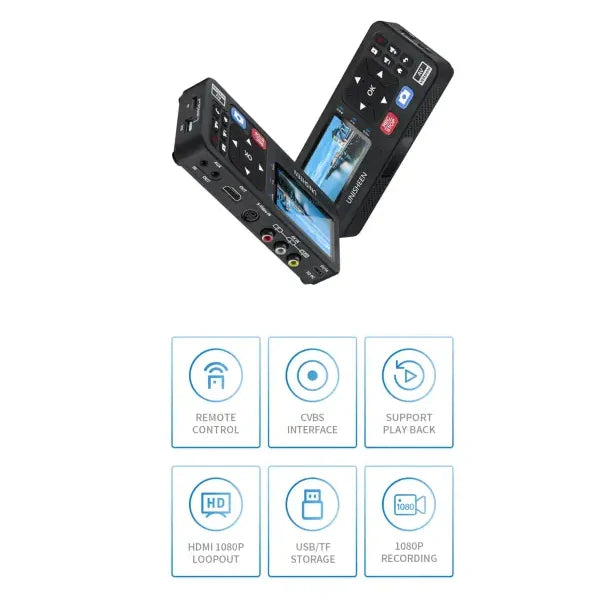

Main Features

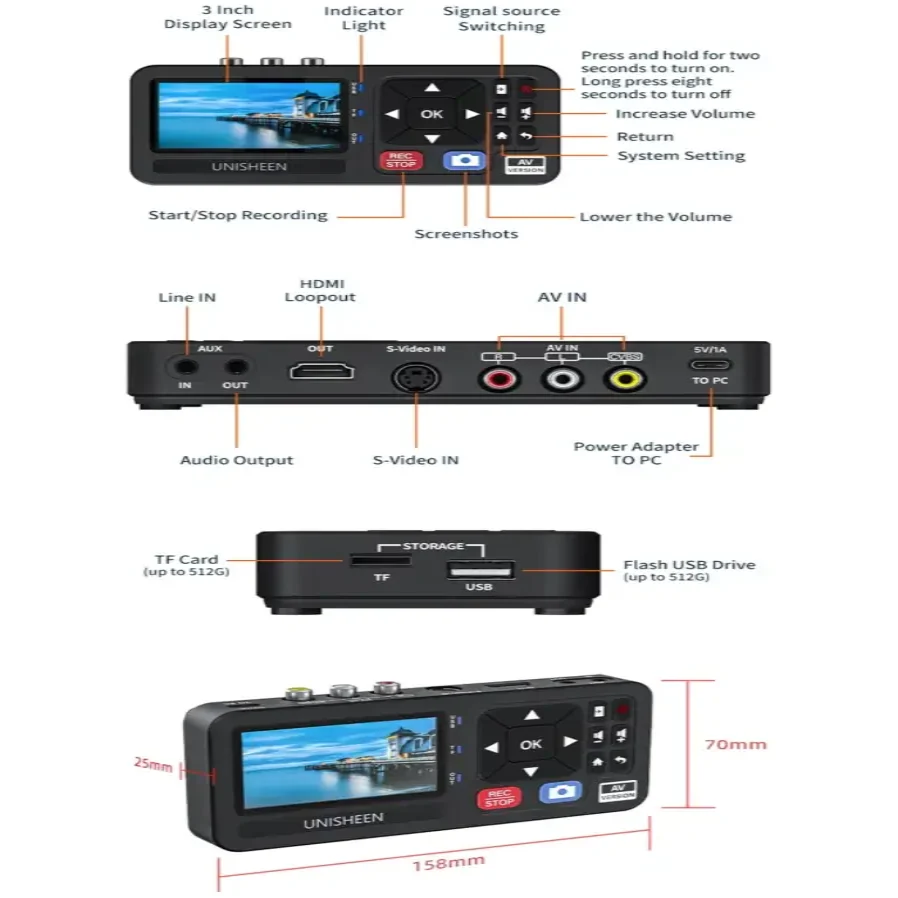

- VHS & VCR Recording: Captures video from VHS, VCR, camcorders and other devices with CVBS/S-Video output.
- 1080p Recording: Supports recording resolutions of 480p, 576p and 1080p.
- MP4 Recording: Saves video in MP4 format using H.264 codec.

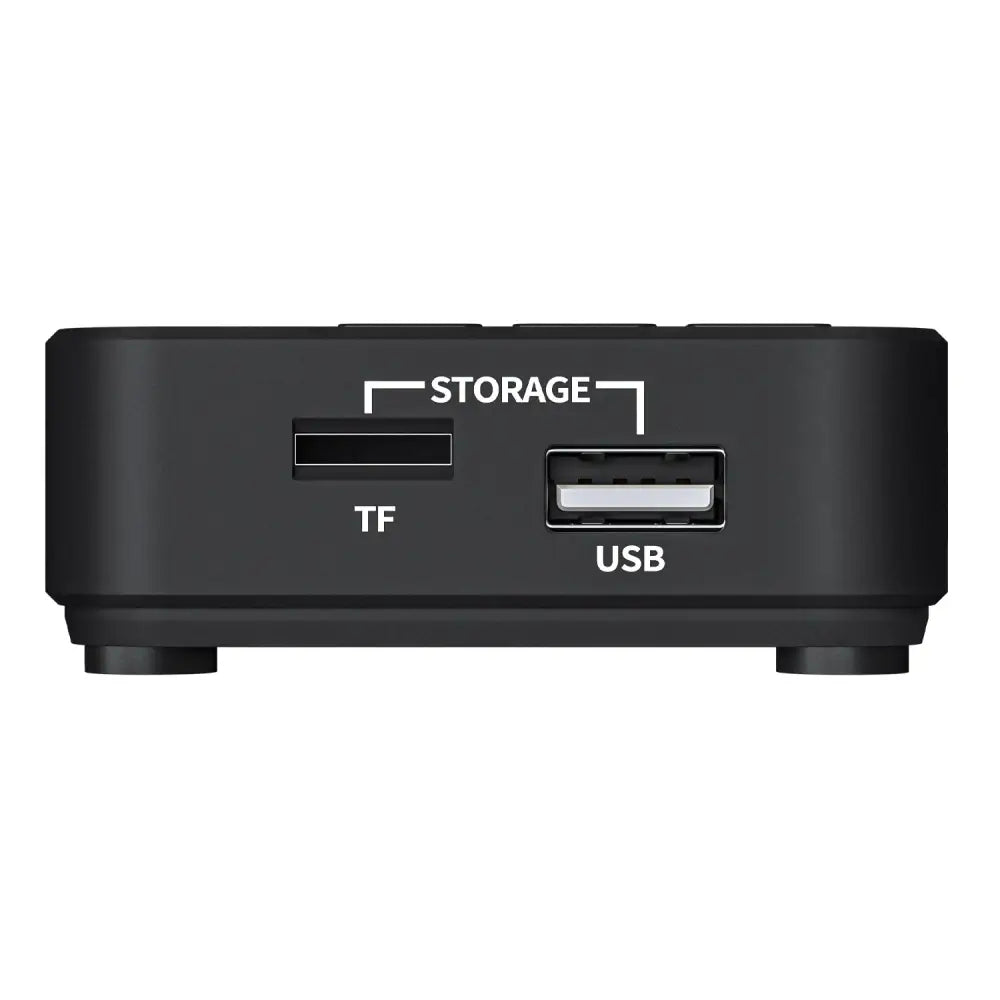

- USB & TF Storage: Supports USB flash drives and TF cards up to 512GB.
- Audio Recording: Supports audio-only recording through the audio input.
- HDMI Loop Out: Provides HDMI 1080p loop-out.
- Playback: Supports playback of recorded files.
- Screenshot: Supports screenshots during recording.
- Schedule Recording: Includes a schedule recording function.
- Remote Control: Includes a remote control for operation.
- Computer Mode: Supports UVC/UAC and Win10, Mac OS and Linux.
Specifications

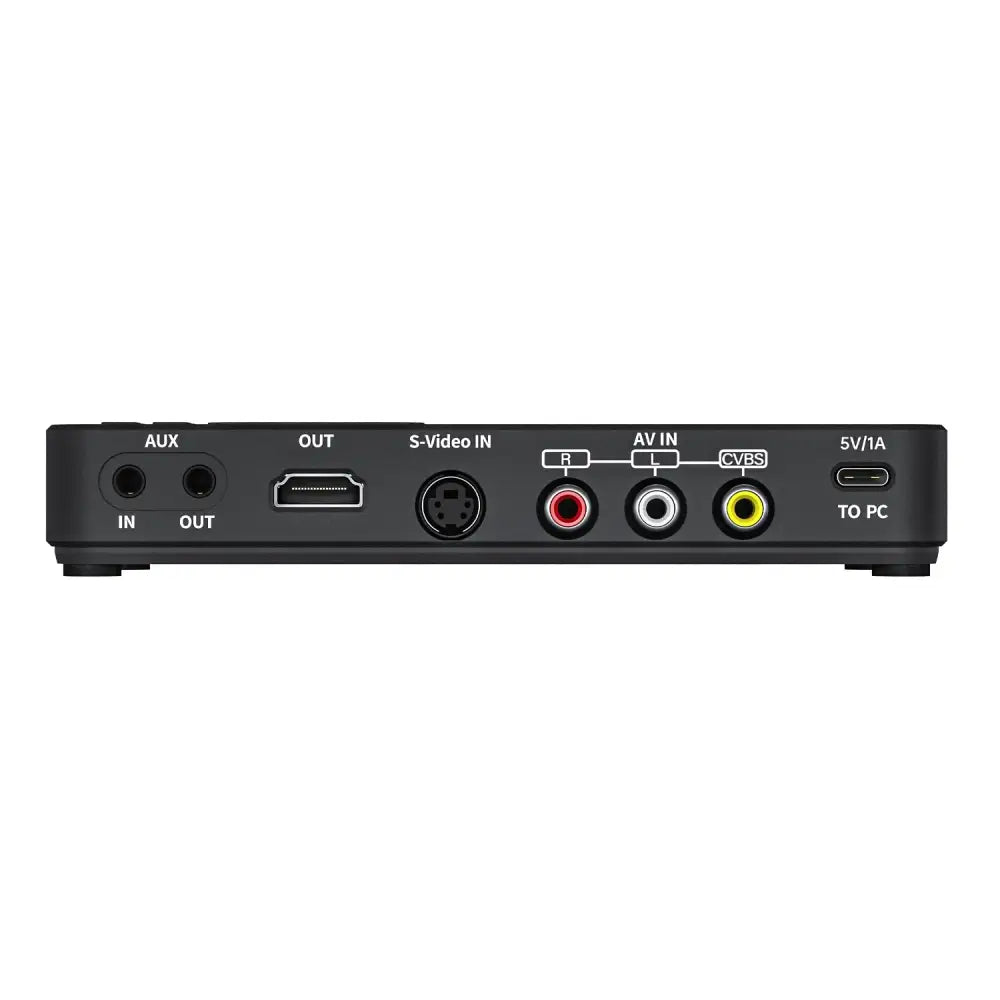

- Video Input: 1 × CVBS/S-Video
- Audio Input: RCA Audio / External Line In
- Video Input Resolution: 720 × 576 / 720 × 480 NTSC/PAL
- Record Resolution: 1080p / 576p / 480p
- Loop Out: 1 × HDMI 1080p
- Record Format: MP4 (H.264 Codec)
- Storage: USB Flash Drive up to 512GB / TF Card up to 512GB
- File System: FAT32 / exFAT / NTFS
- Maximum File Size: 4GB (FAT32) / 16GB (NTFS/exFAT)
- Video Bitrate: 4 / 6 / 8MB
- Audio Bitrate: 128 / 196 / 320KB
- Display Screen: 3 inch
- Schedule Recording: Supported
- Compatible Systems: Win10 / Mac OS / Linux
- Compatible Applications: OBS / Xsplit / Wirecast / FLME / QuickTime / VLC / Potplayer / Skype
- Language: English / Japanese / Italian
- Dimension: 158 × 70 × 25mm
- Package Dimension: 186 × 145 × 78mm
- Net/Gross Weight: 0.18kg / 0.6kg
- Power: 5V DC 1.0A / 3W
- Working Temperature: 0–55°C
- Storage Temperature: -20–80°C
Package Includes
- 1 × UR230A
- 1 × RCA Cable 1.2M
- 1 × 3.5mm Audio Cable 1.2M
- 1 × USB Cable 0.8M
- 1 × USB Power Adapter 5V1A
- 1 × Remote Control
- 1 × Manual
